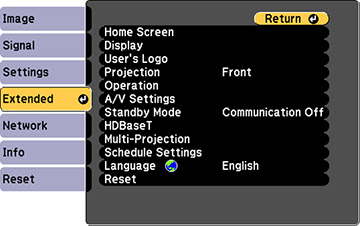

Projector Setup Settings - Extended Menu

Settings on the Extended menu let you customize various projector setup features that control its operation.



A/V Settings A/V Output

Monitor Out

Audio Settings

 Selects various audio and video output settings

A/V Output: select to output audio and video to an external monitor when the projector is in standby mode (Standby Mode must be turned on to use this setting)

Monitor Out: select the image source to output to an external monitor when the projector is in standby mode; when set to Auto, selects output from the Computer or BNC port depending on which was used when the projector went into standby mode

Audio Settings: selects audio output settings
  • Audio Output: select the audio source to output when projecting images from the Computer or BNC ports
  • HDMI1 Audio Output/HDMI2 Audio Output: select the audio source to output when projecting images from the HDMI1 or HDMI2 ports
Standby Mode Communication On

Communication Off

 Enable this setting to allow the following operations to occur when the projector is in standby mode:
  • Monitor and control the projector over a network
  • Output audio and video to an external device (A/V Output must be set to Always On)
  • Communication from the HDBaseT port (Control Communications must be set to On)
